The system is an entry-level design and is suitable for small batch productions, as well as most two-component glues, using pneumatic or pump feeds. The single shot maximum injection volume is 9.8 cc. The system can be matched from the foot switch control to the fully automatic control function and can be used with the scale. Not used for other entry-level equipment, the 860-5 system still uses an integral directional valve structure. Ensure the synchronization of material flow switching. The mixing section occurs only in the static mixer and does not require solvent cleaning. In those occasions that still rely on artificial mixing. The 860-5 provides a highly cost-effective, reliable, stable and well-controlled device solution.
     If you want to know more about price and ordering information, please contact us immediately


860-5SA Single Travel Metering System
860-5 Specifications
Maximum injection volume per stroke: .............. 9.8 oz. (290 cc’s) @ 1:1 ratio, pbv
Dimensions: ............................ 8” W x 30” L x 18” H (Less tanks)
Air pressure requirements: .............................70 - 100 PSIG
Power Requirements: .............................120 VAC.
Optional items

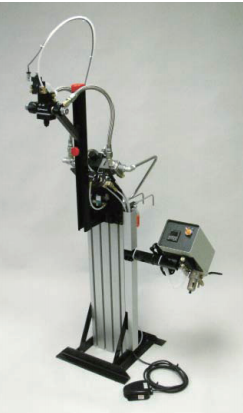

  • Model 860-5V is a vertical design structure suitable for use in work areas. (See photo to the right)
  • For digital injection gratings with high injection accuracy requirements
  • You can also use the time controller to control the amount of glue
• Automatic dispensing control - used with short trial period resin glue
  • All stainless steel components - used with corrosive materials
  Tank options
  • 2-10 gallons bucket
  • Can be pumped directly from the original drum
